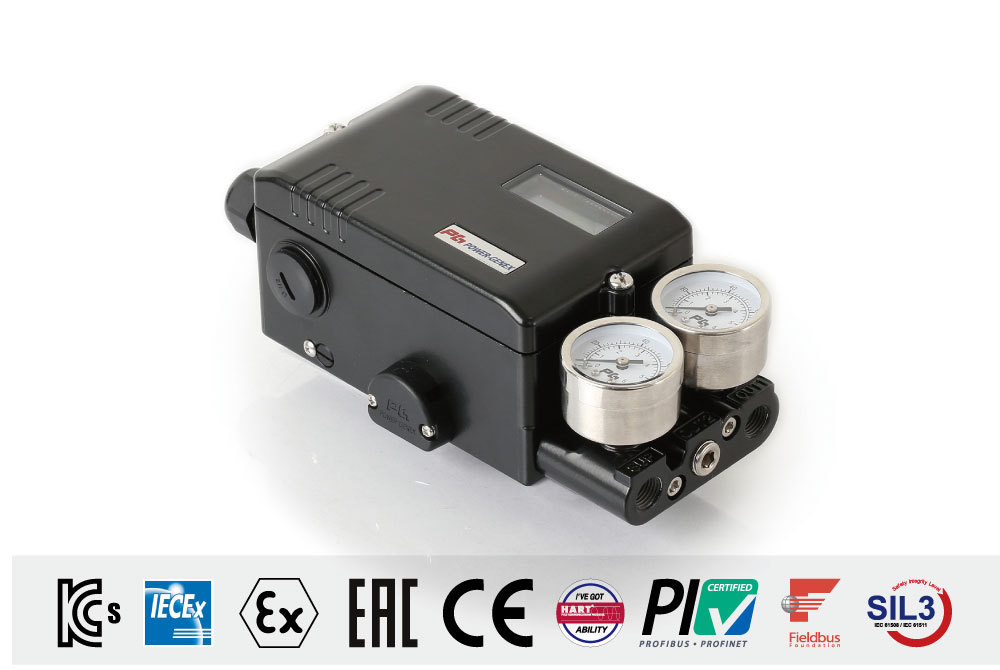

SMART POSITIONER : SS2

Smart performance with innovative and ever-strong coil module even under harsh working environments

Features

- Easy and quick auto-calibration
- Detecting RA (reverse acting) or DA (direct acting) automatically regardless of wrong air connections
- Available to use for single or double acting without any special adjustments
- Compact design allowing to be installed on small actuators
- Providing error messages against performance failures
- Possible to test the actuator with any fixed signal under a test mode
- Programmable characteristic curve with 17 points
- Wide operating temperature range -30 ~ +80℃
- Improved control of high-friction globe and ball valves by eliminating an overshoot and a hunting
- Low air consumption
- Providing a mounting bracket to meet IEC 60534-6-1 for linear valves
- Supporting a NAMUR mounting pattern VDI/VDE 3845 (IEC 60534-6-2) and providing a multi-size mounting bracket for rotary valves

Option

- Output position transmitter (4 - 20 mA)
- 2 x alarm limit or micro switch (SPDT)
- By-pass
- Explosion proof type (Exia IIC T6)
- HART communication
- Profibus PA communication (pending)
- Fieldbus FF communication (pending)

Specifications

Input Signal	4 - 20 mA @ 24 VDC
Min. / Max. Current	3.6 mA / 50mA
Voltage Drop (Resistance)	Without Hart : 8.7 VDC (435Ω @ 20mA) With Hart : 9.4 VDC (470Ω @ 20mA)
Stroke / Angle	Linear type : 8 - 130mm * Rotary type : 25 - 120°
Air Supply Pressure	1.4 - 7.0 bar (20 - 100 psi)
Output Pressure Range	0 - 100% of supply air pressure
Air Capacity	80 ℓ/min = 4.8 Nm3/h = 2.8 scfm (Sup = 1.4 bar) 233 ℓ/min = 14 Nm3/h = 8.2 scfm (Sup = 6 bar)
Air Consumption	2.8 ℓ/min = 0.17 Nm3/h = 0.1 scfm (Sup = 1.4 ~ 6 bar)
Performance Characteristic	Linearity < ±0.3% F.S Sensitivity < 0.2% F.S Hysteresis < 0.2% F.S Repeatability < 0.2% F.S
LCD Indication	4-digit LCD indicator
Adjustable Speed	1 - 1000 ( lowest 1, highest 1000 )
Scan Time	2ms
Shut-off Value	Range 0 - 10% of position signal
Valve Action	Direct action(DA) / reverse action(RA)
Operating Temperature	-30 ~ +80℃ (-22 ~ +176℉) **
Pneumatic Connections	Rc 1/4 or 1/4 NPT
Electrical Connections	2 x G 1/2 or 1/2 NPT
Protection Class	IP66, intrinsic safety (Exia IIC T6)
Body Material	Aluminum die-cast / powder-painted
Weight	1.6 kg

How to order

SS2-

Actuator Operation

Protection Class

Feedback Lever

Pressure
Gauges

By-pass

Position
Feedback

Communi-
cation

Connection
Threads

Mounting
Bracket

Feedback Pin
Guide Lever Set

Description	Code
Actuator Operation :	L : Linear type R : Rotary type
Protection Class :	I : Intrinsic safety (IECEx Ex ia IIC T6 ATEX EEx ia IIC T6) K : Intrinsic safety (KTL Ex ia IIC T6) W : Weatherproof to IP66
Feedback Lever : - Linear Type - Rotary Type	A: Stroke (8 ~ 30mm) B: Stroke (8 ~ 65mm) C: Stroke (8 ~ 130mm) D: Stroke (80 ~ 200mm) F: Fork lever N: Namur shaft (direct mounting)
Gauge Block :	N : None 1 : 6 bar (90psi) 2 : 10 bar (150psi)
By-pass :	N: No Y: Yes (auto / manual screw)

Description	Code
Position Feedback :	N : None O : Position transmitter (4 ~ 20mA output signal) L : 2 x alarm limit S : 2 x micro switch (SPDT) M : O+L Q : O+S
Communication :	N : None H : HART communication P : Profibus PA communication F : Fieldbus FF communication
Connection Threads (pneumatic-electrical)	3 : Rc 1/4 or G1/2 (standard) 4 : NPT 1/4 or NPT 1/2 5 : Rc 1/4 or M20 x 1.5
Mounting bracket :	N : None L : IEC 60534-6-1 (for SS2L) R : VDI/VDE 3845 (IEC 60534-6-2)(for SS2R)
Feedback Pin Guide Lever Set: (only for linear type SS2L)	0 : Not included 1 : Included
