Load cell : PTASP6-G
PTASP6-G

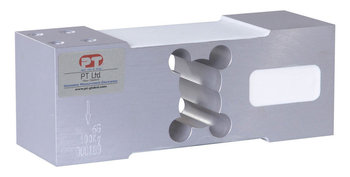

(50kg~600kg) Aluminium, Low Cost, 600x600mm platform.
| Medium to high capacity versatile single point load cell. Suitable for most simple weighing scales in industrial use. The PTASP6-G has a small physical footprint in relation to its capacity, making it ideal for low cost compact medium/high capacity scales. Typical applications often include packaging machines, filling machines, industrial process control. Two additional sense wires feed back the voltage reaching the load cell which improves performance. Sealed to IP56. |
| SPECIFICATIONS | |||
| Signal Output at Capacity Linearity Error Non-Repeatability Combined Error Off Centre Load Error Creep/(30 mins.) Zero Balance Temperature Effect On Span/10C Temperature Effect on Zero/10C Operating Temperature Range Compensated Temperature Range Storage Temperature Range Excitation +ve Signal +ve Sense +ve |
2±0.2 mV/V < 0.017% FSO < 0.010% FSO < 0.020% FSO < 0.020% FSO < 0.015% FSO < 2.0% Capacity < 0.014% FSO < 0.017% FSO -35 ~ +65 C -10 ~ +40 C -50 ~ 85 C RED GREEN BLUE |
Service Load Safe Load Ultimate Load Input Resistance Output Resistance Insulation Resistance Excitation Voltage (Rec) Excitation Voltage (Max) Cable ... Material Sealing Excitation -ve Signal -ve Sense -ve |
100% Capacity 150% Capacity 300% Capacity 409Ω ± 6Ω 350Ω ± 3Ω > 5000 MΩ (@50 VDC) 5 ~ 12 V AC/DC 18V AC/DC 3m long, Ø6.0 mm 6 core screened PVC Aluminium Alloy IP65 BLACK WHITE YELLOW |
| DIMENSIONS | CAPACITIES | |
 |
Model
|
Capacity
|
